Outdoor Materials Hub
Cast Iron Drain Covers, Manhole Covers & Grates
Cast iron drain covers, manhole covers and drainage grates for project supply. Compare the complete cover-and-frame assembly by installation zone, clear opening, frame dimensions, drainage function and model-specific evidence.
-

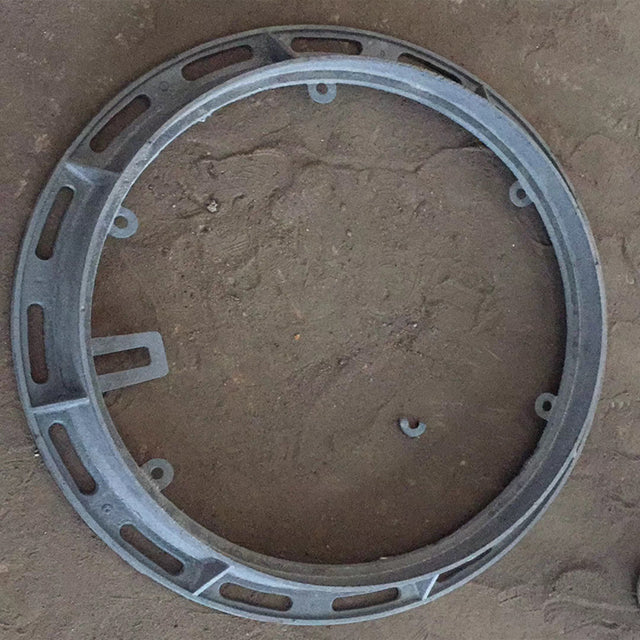

Round Cast Iron Manhole Frame with Anchoring Lugs -

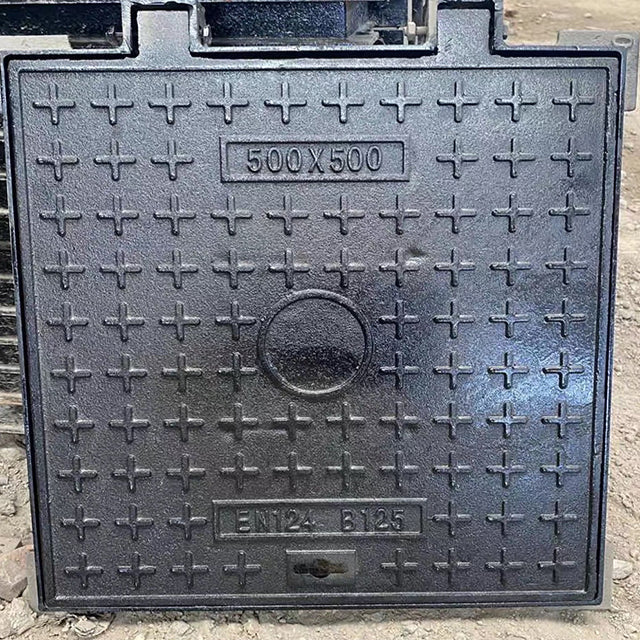

EN 124 B125-Marked 500 × 500 mm Cast Iron Access Cover and Frame -

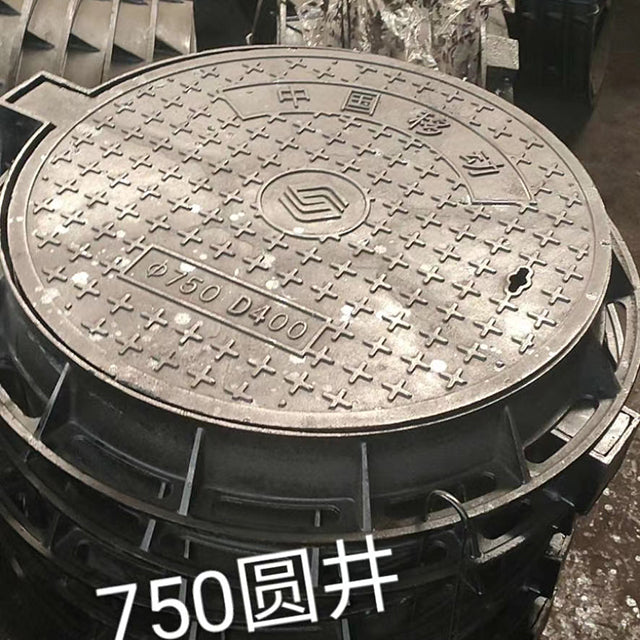

EN 124 D400-Marked 750 mm Round Cast Iron Manhole Cover and Frame -

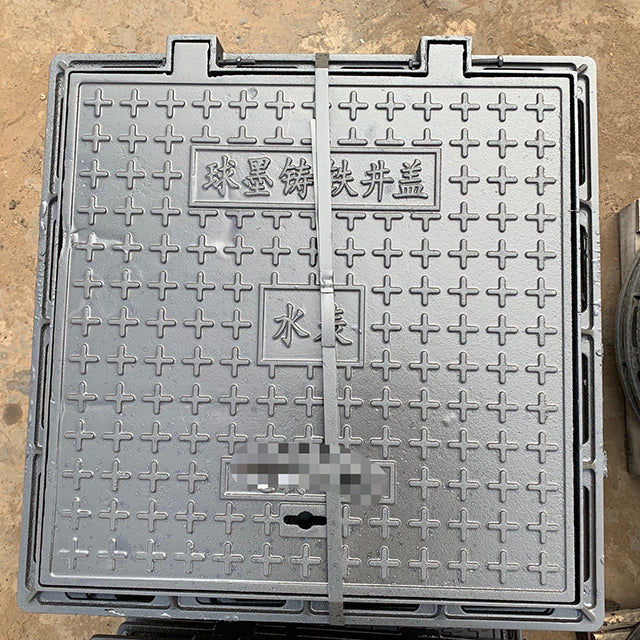

Rectangular Cast Iron Utility Access Cover and Frame – Raised Plus Pattern -

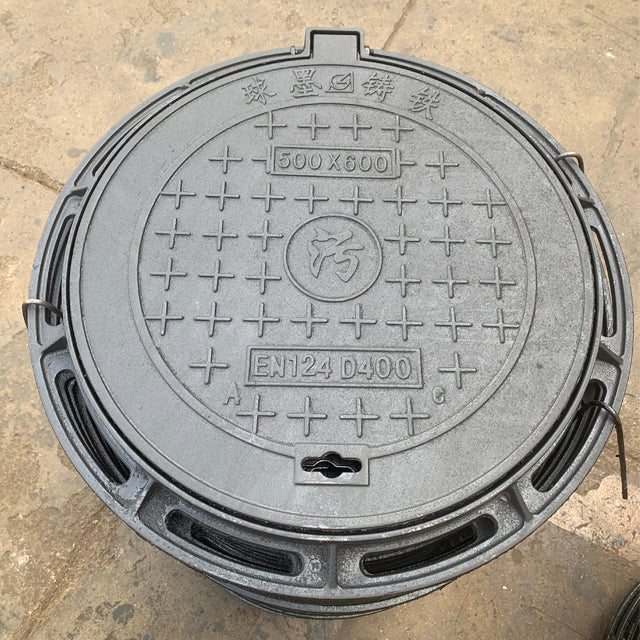

EN 124 D400-Marked Round Cast Iron Manhole Cover and Frame -
Square-Frame Round Cast Iron Manhole Cover – Decorative Map Pattern -

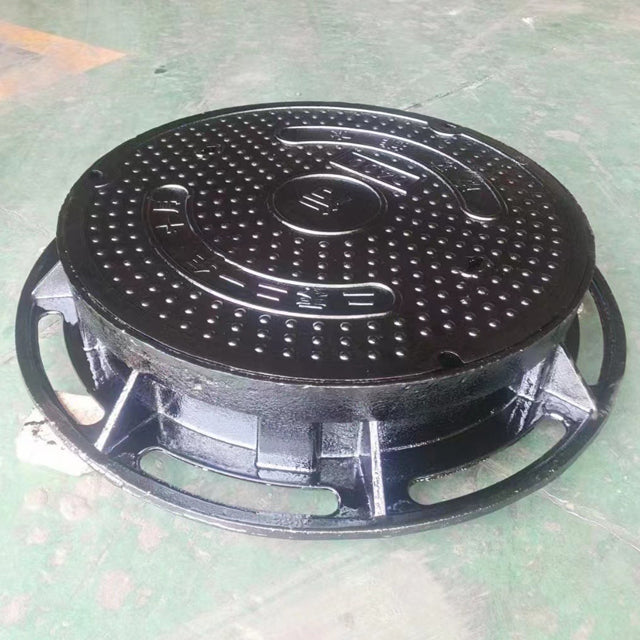

Round Cast Iron Manhole Cover and Frame – Raised Anti-Slip Pattern -

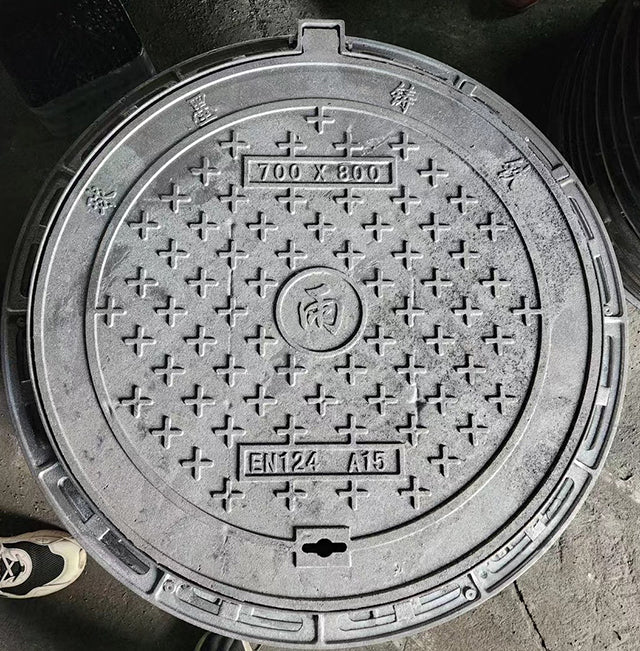

EN 124 A15-Marked Round Cast Iron Manhole Cover and Frame
Choose by drainage or access function
Buyers often use “drain cover” broadly. For accurate selection, distinguish the product format before comparing models:
- Solid manhole or access cover: confirm the clear opening, frame interface, sealing or security requirement, opening method and maintenance access.
- Open drainage grate: confirm the required inlet function, opening geometry, debris and maintenance conditions, and safe interface with the surrounding surface.
- Cover-and-frame assembly: quote and approve the matched assembly rather than assuming a cover will fit an existing frame.
Confirm before comparing products
- Application and installation zone: pedestrian area, verge, car park, carriageway, industrial area or another project-defined location.
- Product identity: exact material, model, clear opening, overall frame dimensions, cover or grating format, seating, retention and opening method.
- Performance evidence: required class, referenced standard and material-specific part, test report or declaration for the exact model, and the project acceptance criteria.
- Operation: drainage inlet area or sealed access requirement, slip and noise considerations, safe handling, maintenance frequency and access equipment.
- Installation interface: supporting chamber, frame bearing, bedding, fixing, finished level, adjacent surfacing and responsibility for site installation.
Evidence boundary. EN 124-1 provides the general framework and is used with the relevant material-specific part; cast-iron products are addressed by EN 124-2. A photo, cast marking or product name does not by itself prove project compliance. Request current model-specific drawings, declarations and test documents, and follow the destination authority and project specification.
Send for project review and quotation
Send the product or model reference, required standard and class, installation location, clear opening and frame dimensions, quantity, destination, drawings and document list.
Request a drainage product review · View the technical resource library
MOQ, packing, net and gross weight, availability, lead time, factory, route and port are confirmed only in the current quotation after the exact model and destination are known.
Quotation checklist
Prepare a drainage product quotation
Compare covers, grates and utility products by the complete assembly, installation zone and evidence required for the exact model.
Send these project details
- Cover, grate or frame type and installation area
- Required load class, clear opening and overall frame dimensions
- Drawings, model-specific documents and installation interface
- Required size, quantity and delivery location
MOQ, packing, weight, availability, lead time, factory, origin and route are confirmed only in the current quotation.
Send your drainage requirements
